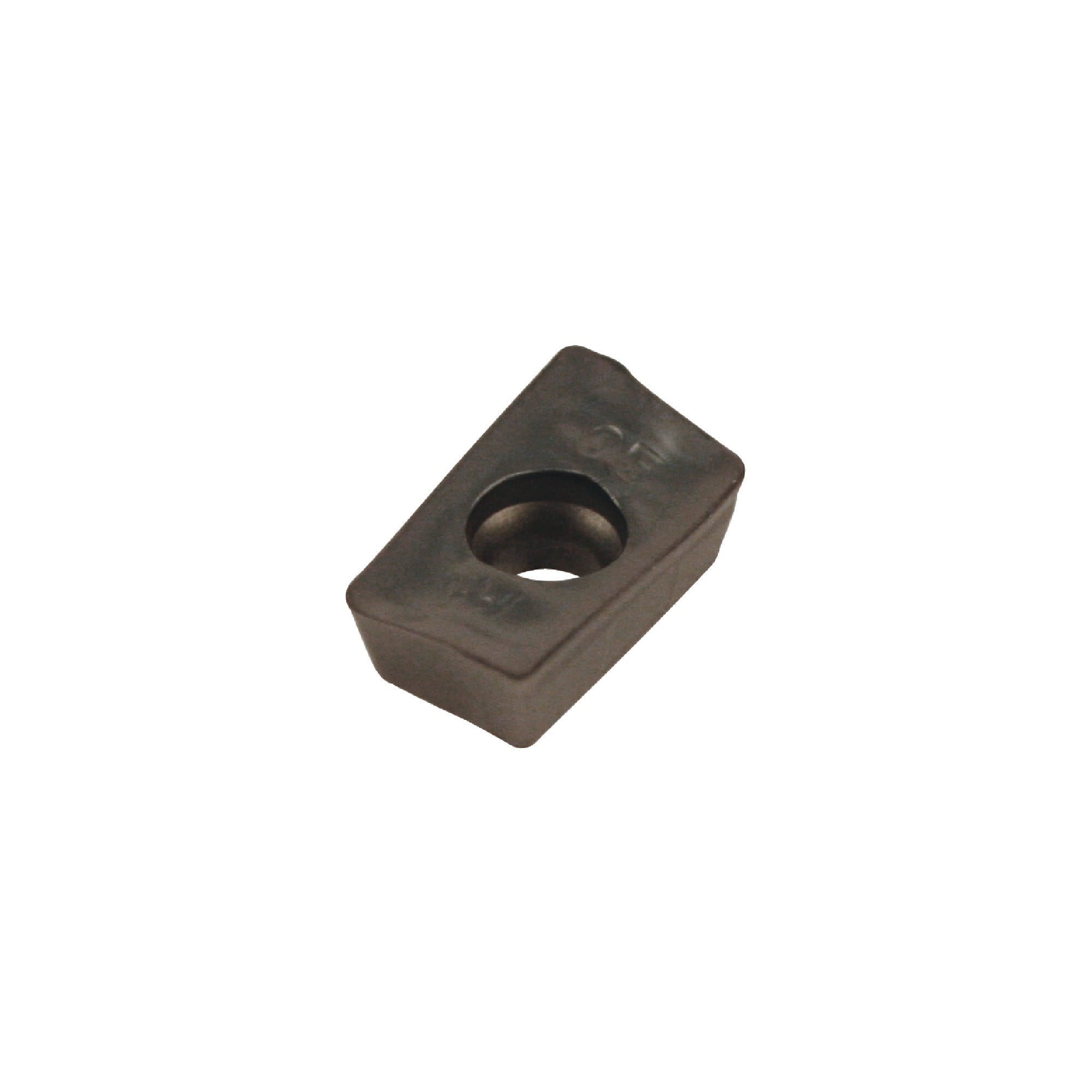

KORLOY-1-02-038367: APMT11T3PDSR-MF PC5300, Parallelogram Milling Insert, 10-Pack

data-zoom=

KORL-1-02-038367

Brand: KORLOY

Ships From Mfr: Stocked in Korea

MSRP $162.80

Price: $123.73

$123.73

40806137954477


KORLOY Part Number: 1-02-038367
Korloy's Milling Inserts are a great blend of value and quality. Respected as a top brand, Korloy is a go to for many machinists. Korloy produces thousands of inserts each month for shipment all of over the world. Be confident that Korloy will work for you.
Korloy's PC5300 grade is a PVC coated carbide. This grade is a superior univeral grade for steel, cast iron, stainless steel and hard to cut materials. The ultra fine grain provide wear resistance and oxidation resistance. (ISO P30-P40, K20-K30, M20-M30, S15-S25)
Korloy's MF chipbreaker is for light cutting and difficult to cut materials. Low cutting force chip breaker design ensures longer tool life.

  • Sold in package of 10 pieces
  • Coating: PVD / TiAlN
  • Tool Material: Carbide
  • Used For: Cast Iron, Stainless Steels, Steel, Exotics

***Product image may be different than actual product.


Brand: KORLOY
Type: Milling Insert
Insert Style: APMT
Insert Shape: Parallelogram
Korloy Holder Series: Alpha Mill
Insert ISO: APMT11T3PDSR-MF PC5300
Insert Size: 11T3
Relief Angle: 11 deg.
Insert IC:
Insert Radius: 0.020 in.
Insert Thickness: 5/32 in.
Chipbreaker: MF
Insert Grade: PC5300
Coating: PVD / TiAlN
Maximum Depth of Cut: 0.433 in.
Tool Material: Carbide
Application Material Used For:: Cast Iron, Stainless Steels, Steel, Exotics
Prop 65: Yes
Country Of Origin: IMPORT
Weight: 0.005 lbs.
Ships From Mfr: Stocked in Korea
