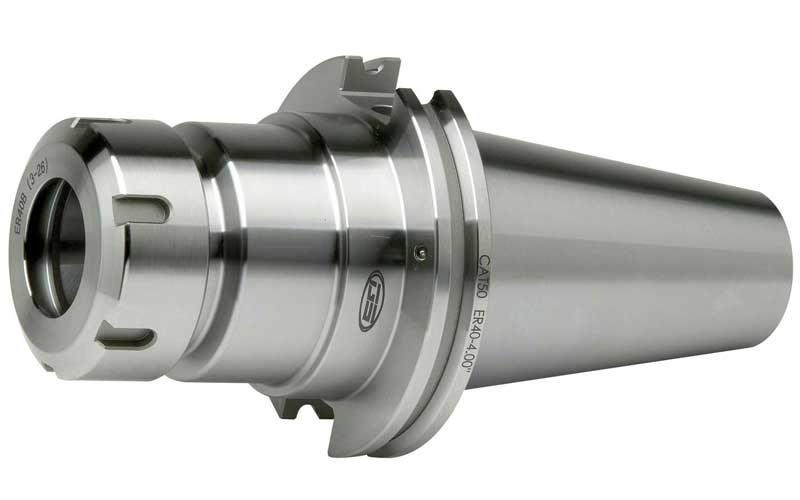

GS-531-464: ER40 CAT50 Collet Chuck, with 8 in. Projection
![data-zoom=](http://www.tigertoolsupply.com/cdn/shop/files/531432_83c54f5d-cd1b-4f1b-8faa-f8a2c1facd2d_480x480.jpg?v=1715136983)
- Regular price
- $257.00
- Sale price
- Regular price
- Unit price
- per
MSRP $325.71
Price: $257.00
39871815221421
GS Tooling Part Number: GS-531-464
GS Tooling Collet Chucks are precision made to DIN Standards and are made of low carbon Chromium-Molybdenum Alloy Steel- SCM415 to HRC 56-60. These Collet Chucks feature two coolant options built into the holder; through the flange and through the body. This holder is threaded for a back-up screw (tool stop) or coolant through when removed. They also have a maximum TIR 0.0003" at 4xDiameter. Wrench is not included.
- 100% Forged Construction
- Certified balanced to 30,000 rpm
- Precision Ground Throughout
- DIN Coolant thru the flange
***Product image may be different than actual product.
Brand: | GS TOOLING |
Type: | ER Collet Chucks |
Model: | 531464 |
Taper: | CAT50 |
Size: | ER40 |
Collet Range: | .118" - 1.023" |
Projection (in): | 8 |
Thru Coolant: | DIN Coolant Thru the Flange |
Head Diameter (in): | 2.48 |
Balanced To: | 30000 RPM |
Prop 65: | Yes |
Country Of Origin: | TAIWAN |
