Home / GS TOOLING / GS-531-462: ER40 CAT50 Collet Chuck, with 6 in. Projection

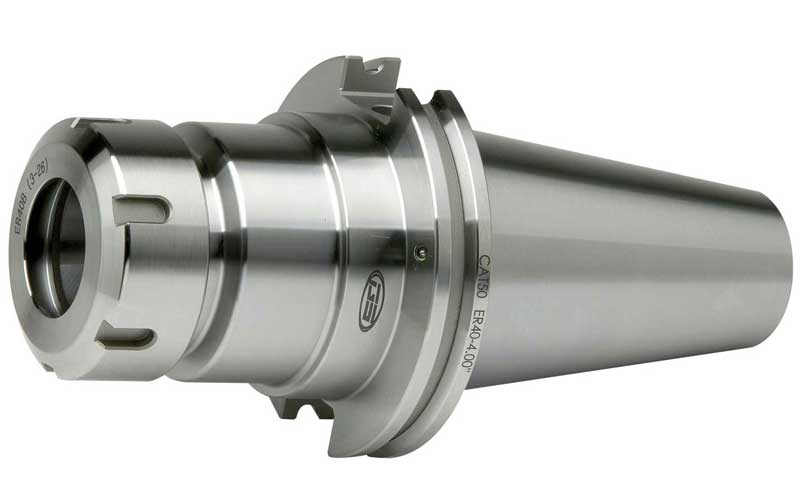

GS-531-462: ER40 CAT50 Collet Chuck, with 6 in. Projection

data-zoom=

GS-531-462

Brand: GS TOOLING

Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst

MSRP $264.33

Price: $209.00

$209.00

39871814992045


GS Tooling Part Number: GS-531-462
GS Tooling Collet Chucks are precision made to DIN Standards and are made of low carbon Chromium-Molybdenum Alloy Steel- SCM415 to HRC 56-60. These Collet Chucks feature two coolant options built into the holder; through the flange and through the body. This holder is threaded for a back-up screw (tool stop) or coolant through when removed. They also have a maximum TIR 0.0003" at 4xDiameter. Wrench is not included.

  • 100% Forged Construction
  • Certified balanced to 30,000 rpm
  • Precision Ground Throughout
  • DIN Coolant thru the flange

***Product image may be different than actual product.


Brand: GS TOOLING
Type: ER Collet Chucks
Model: 531462
Taper: CAT50
Size: ER40
Collet Range: .118" - 1.023"
Projection (in): 6
Thru Coolant: DIN Coolant Thru the Flange
Head Diameter (in): 2.48
Balanced To: 30000 RPM
Prop 65: Yes
Country Of Origin: TAIWAN
