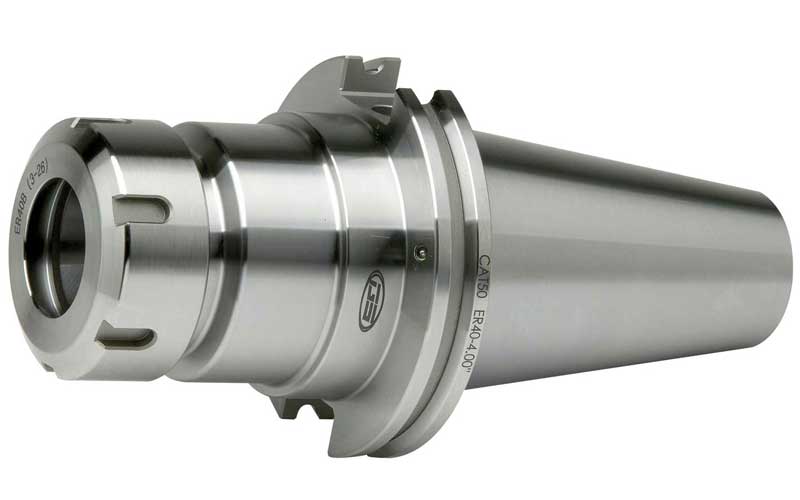

GS-531-450: ER25 CAT50 Collet Chuck, with 6 in. Projection
![data-zoom=](http://www.tigertoolsupply.com/cdn/shop/files/531432_e09165d3-c19d-439e-b7c1-53cd4c907d66_480x480.jpg?v=1715136925)
- Regular price
- $188.00
- Sale price
- Regular price
- Unit price
- per
MSRP $238.59
Price: $188.00
39871812108461
GS Tooling Part Number: GS-531-450
GS Tooling Collet Chucks are precision made to DIN Standards and are made of low carbon Chromium-Molybdenum Alloy Steel- SCM415 to HRC 56-60. These Collet Chucks feature two coolant options built into the holder; through the flange and through the body. This holder is threaded for a back-up screw (tool stop) or coolant through when removed. They also have a maximum TIR 0.0003" at 4xDiameter. Wrench is not included.
- 100% Forged Construction
- Certified balanced to 30,000 rpm
- Precision Ground Throughout
- DIN Coolant thru the flange
***Product image may be different than actual product.
Brand: | GS TOOLING |
Type: | ER Collet Chucks |
Model: | 531450 |
Taper: | CAT50 |
Size: | ER25 |
Collet Range: | .039" - .629" |
Projection (in): | 6 |
Thru Coolant: | DIN Coolant Thru the Flange |
Head Diameter (in): | 1.65 |
Balanced To: | 30000 RPM |
Prop 65: | Yes |
Country Of Origin: | TAIWAN |
