Home / GS TOOLING / GS-531-412: ER20 CAT40 Collet Chuck, with 2.5 in. Projection

GS-531-412: ER20 CAT40 Collet Chuck, with 2.5 in. Projection

GS-531-412: ER20 CAT40 Collet Chuck, with 2.5 in. Projection

GS-531-412

Brand: GS TOOLING

In-stock; Usually Ships Same Day If Order Is Place Before 3pm cst

Price: $164.70

$164.70

39871801229485


GS Tooling Part Number: GS-531-412
GS Tooling Collet Chucks are precision made to DIN Standards and are made of low carbon Chromium-Molybdenum Alloy Steel- SCM415 to HRC 56-60. These Collet Chucks feature two coolant options built into the holder; through the flange and through the body. This holder is threaded for a back-up screw (tool stop) or coolant through when removed. They also have a maximum TIR 0.0003" at 4xDiameter. Wrench is not included. Has a Hex Nut.

  • 100% Forged Construction
  • Certified balanced to 30,000 rpm
  • Precision Ground Throughout
  • DIN Coolant thru the flange

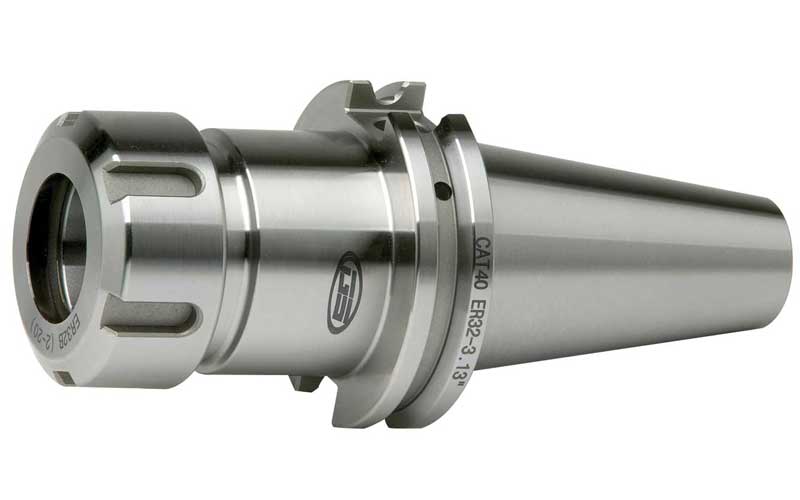

***Product image may be different than actual product.


Brand: GS TOOLING
Type: ER Collet Chucks
Model: 531412
Taper: CAT40
Size: ER20
Collet Range: .019" - .551"
Projection (in): 2.5
Thru Coolant: DIN Coolant Thru the Flange
Head Diameter (in): 1.38
Balanced To: 30000 RPM
Prop 65: Yes
Country Of Origin: TAIWAN
In-stock; Usually Ships Same Day If Order Is Place Before 3pm cst
