GS TOOLING-338-334; 5.5mm ER20 SPRING COLLET, SEALED

data-zoom=

GS-338-334

Brand: GS TOOLING

Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst

MSRP $51.90

Price: $41.00

$41.00

39871667765421


GS TOOLING Part Number: GS-338-334

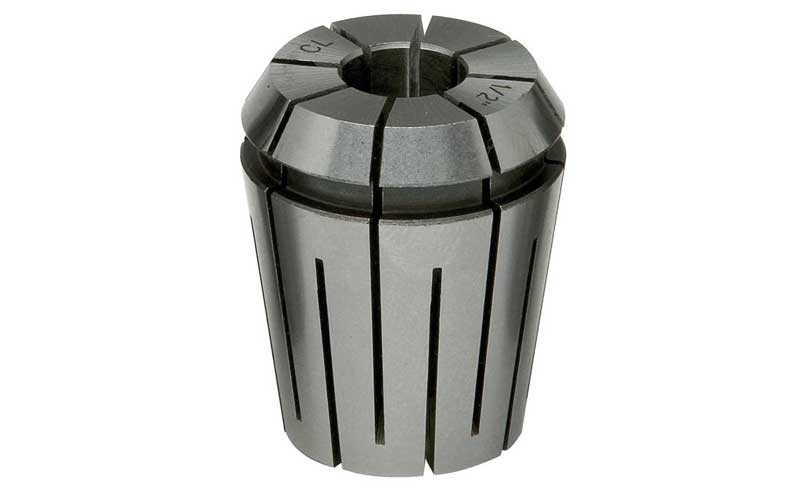

GS TOOLING ER20 SPRING COLLET is made of special elastic steel material under excellent heat treatment and precise grinding process, so it has precise accuracy, powerful clamping ability, and is durable. It can be widely used for boring, milling, drilling and tapping as well as for grinding operations.

  • Sealed For Coolant Through Applications
  • Pressure Resistance Tested To 2000 PSI
  • Approximately 1/32" Collapse With Full Accuracy
  • High Precision With Runout Of Only 10 Microns (0.01mm or 0.0004")

***Product image may be different than actual product.


Brand: GS TOOLING
Type: ER Collets
Collet Series: ER20
Collet Size: 5.5mm
Collet Capacity Range: .196"-.217"
TIR: 0.01mm/0.0004"
Collet Length: 31mm
Collet Outside Diameter: 21mm
Prop 65: Yes
Country Of Origin: Import
