GS TOOLING-338-298; 5.5mm ER16 SPRING COLLET, SEALED

 data-zoom=

GS-338-298

Brand: GS TOOLING

Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst

MSRP $48.26

Price: $38.00

Regular price
$38.00
Sale price
Regular price
Unit price
per

39871658885293


GS TOOLING Part Number: GS-338-298

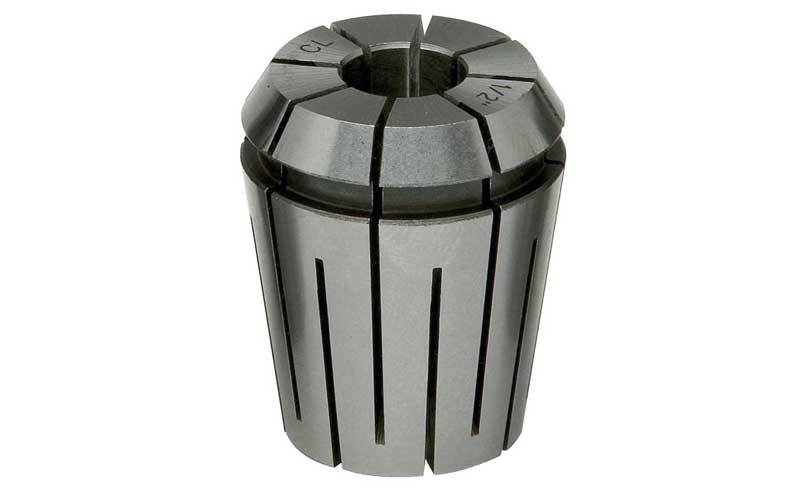

GS TOOLING ER16 SPRING COLLET is made of special elastic steel material under excellent heat treatment and precise grinding process, so it has precise accuracy, powerful clamping ability, and is durable. It can be widely used for boring, milling, drilling and tapping as well as for grinding operations.

  • Sealed For Coolant Through Applications
  • Pressure Resistance Tested To 2000 PSI
  • Approximately 1/32" Collapse With Full Accuracy
  • High Precision With Runout Of Only 10 Microns (0.01mm or 0.0004")

***Product image may be different than actual product.


Brand: GS TOOLING
Type: ER Collets
Collet Series: ER16
Collet Size: 5.5mm
Collet Capacity Range: .196"-.217"
TIR: 0.01mm/0.0004"
Collet Length: 27mm
Collet Outside Diameter: 17mm
Prop 65: Yes
Country Of Origin: Import
