Home / Retention Knobs / Pull Studs & Accessories / Briney B329-13-HTHS: High Torque Pull Stud (Retention Knob) For V-Flange Tooling, BT40 Taper, M16x2 Thread, 15° Angle

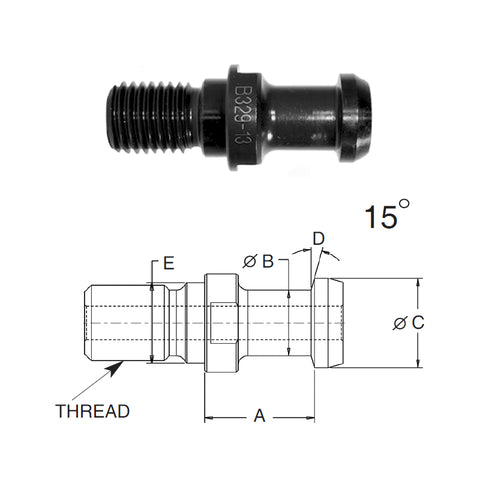

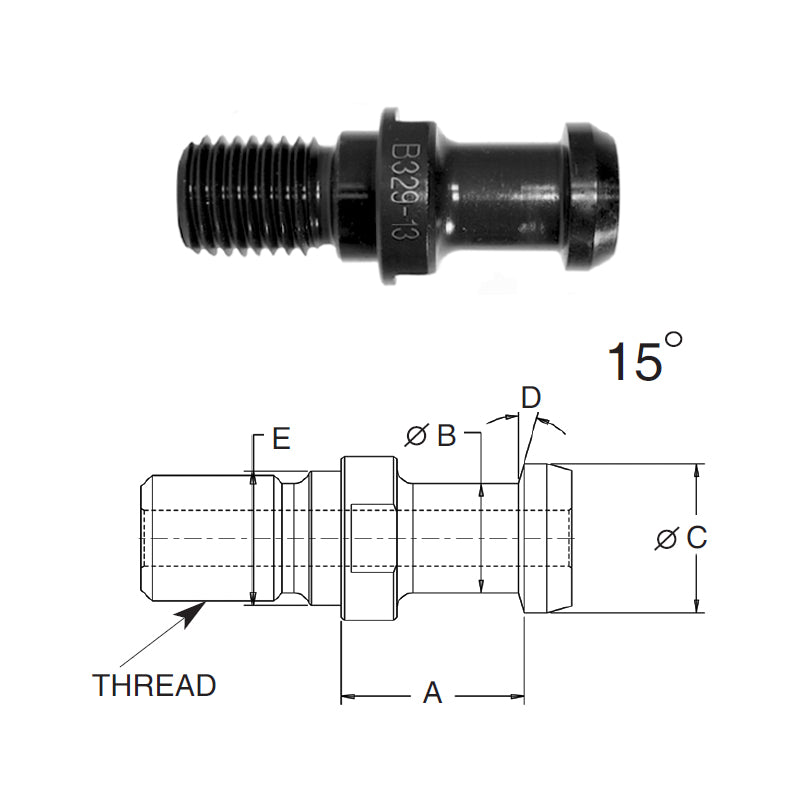

Briney B329-13-HTHS: High Torque Pull Stud (Retention Knob) For V-Flange Tooling, BT40 Taper, M16x2 Thread, 15° Angle

data-zoom=

B329-13-HTHS

Brand: BRINEY

Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst

MSRP $67.00

Price: $50.25

$50.25

39895272751277


Briney Tooling Systems Part Number: B329-13-HTHS
Briney's Retention Knobs (Pull Studs) are made in the USA from the finest steels. Covered by a limited Lifetime Guarantee, these retention knobs will out preform all others. Please check your machine specifications carefully when ordering to ensure the proper fit and use.

  • USA Made
  • Precision Ground
  • Laser Marked
  • Limited Lifetime Guarantee

***Product image may be different than actual product.


Brand: BRINEY TOOLING SYSTEMS
Type: Retention Knobs-High Torque
Model: 329-13
Knob Diameter (in): 0.746
Threads: M16x2
Neck Diameter (in): 0.549
Angle: 15
Thru-Coolant: Yes
O-Ring: No
Pilot Diameter (in): 0.669
Distance From Under Flange to Top Of Knob: 0.904
Country Of Origin: USA
Prop 65: Yes
Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst
