Briney B321-14: Standard Pull Stud (Retention Knob) For V-Flange Tooling, CAT40 Taper, 5/8-11 Thread, 45° Angle

Briney B321-14: Standard Pull Stud (Retention Knob) For V-Flange Tooling, CAT40 Taper, 5/8-11 Thread, 45° Angle

B321-14

Brand: BRINEY

Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst

Price: $34.50

$34.50

39895271014573


Briney Tooling Systems Part Number: B321-14
Briney's Retention Knobs (Pull Studs) are made in the USA from the finest steels. Covered by a limited Lifetime Guarantee, these retention knobs will out preform all others. Please check your machine specifications carefully when ordering to ensure the proper fit and use.

  • USA Made
  • Precision Ground
  • Laser Marked
  • Limited Lifetime Guarantee

***Product image may be different than actual product.


Brand: BRINEY TOOLING SYSTEMS
Type: Retention Knobs-Standard
Model: 321-14

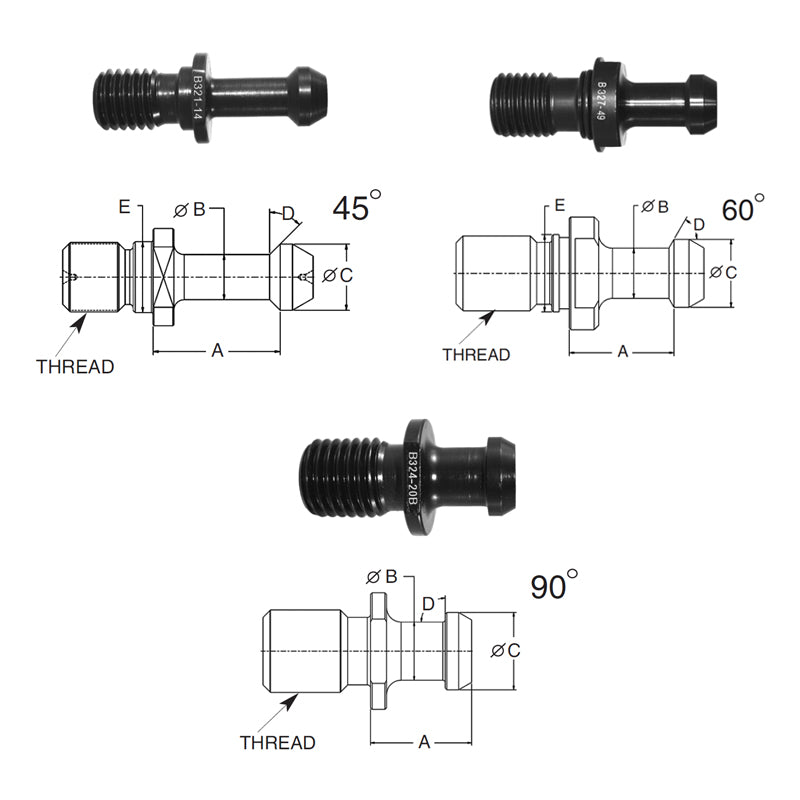

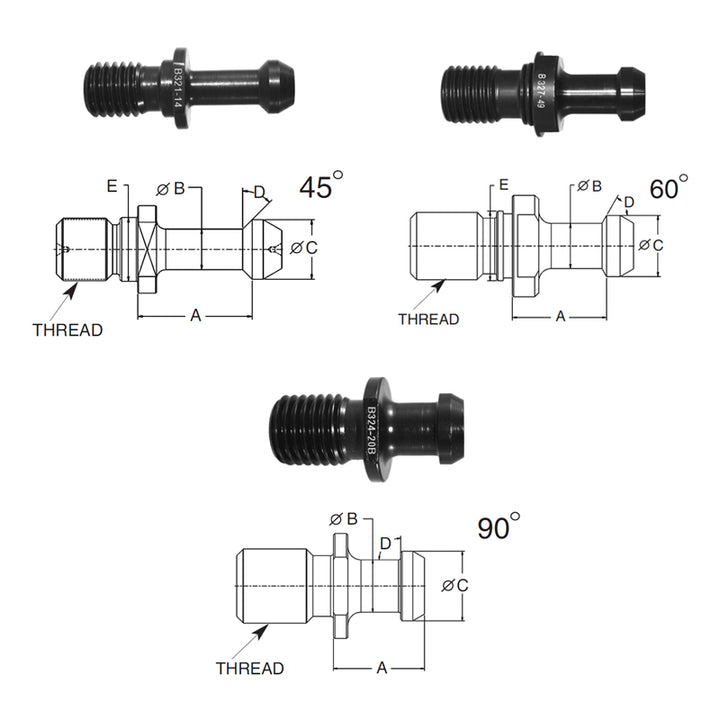

Knob Diameter (in): 0.588
Threads: 5/8"-11
Neck Diameter (in): 0.392
Angle: 45
Thru-Coolant: No
O-Ring: No
Pilot Diameter (in): 0.64
Distance From Under Flange to Top Of Knob: 0.988
Country Of Origin: USA
Prop 65: Yes
