Home / Retention Knobs / Pull Studs & Accessories / Briney B316-47-HTHS: High Torque Pull Stud (Retention Knob) For V-Flange Tooling, CAT50 Taper, 1-8 Thread, 45° Angle

Briney B316-47-HTHS: High Torque Pull Stud (Retention Knob) For V-Flange Tooling, CAT50 Taper, 1-8 Thread, 45° Angle

data-zoom=

B316-47-HTHS

Brand: BRINEY

Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst

MSRP $91.00

Price: $68.25

$68.25

39895265542317


Briney Tooling Systems Part Number: B316-47-HTHS
Briney's Retention Knobs (Pull Studs) are made in the USA from the finest steels. Covered by a limited Lifetime Guarantee, these retention knobs will out preform all others. Please check your machine specifications carefully when ordering to ensure the proper fit and use.

  • USA Made
  • Precision Ground
  • Laser Marked
  • Limited Lifetime Guarantee

***Product image may be different than actual product.


Brand: BRINEY TOOLING SYSTEMS

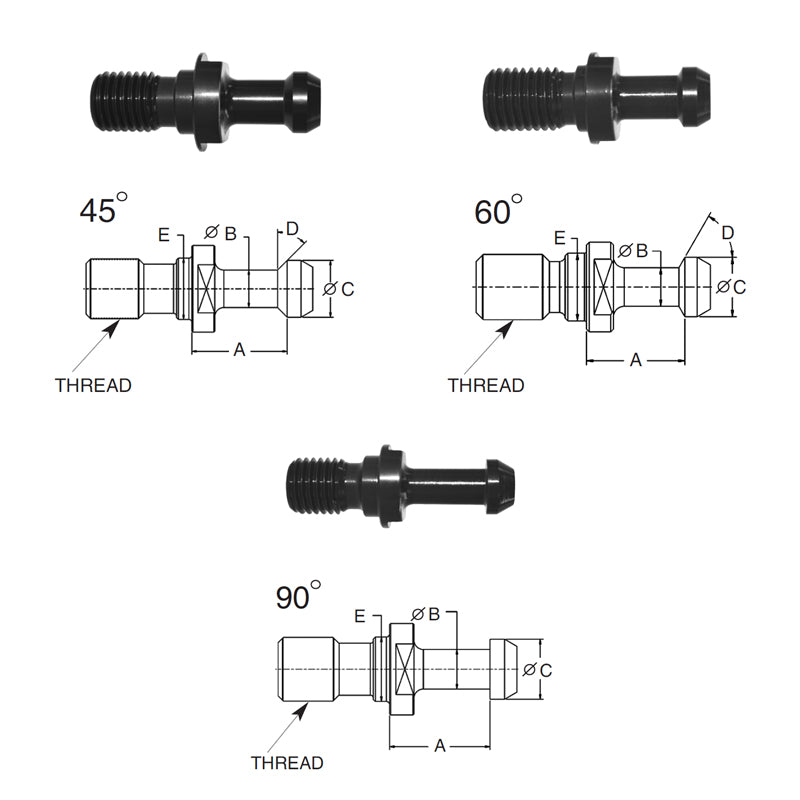

Type: Retention Knobs-High Torque
Model: 316-47
Knob Diameter (in): 0.903
Threads: 1"-8
Neck Diameter (in): 0.668
Angle: 45
Thru-Coolant: Yes
O-Ring: Yes
Pilot Diameter (in): 1.03
Distance From Under Flange to Top Of Knob: 1.384
Country Of Origin: USA
Prop 65: Yes
