Briney B311-13B: Standard Pull Stud (Retention Knob) For V-Flange Tooling, BT40 Taper, M16x2.0 Thread, 90° Angle

data-zoom=
data-zoom=
  • Load image into Gallery viewer, Briney B311-13B: Standard Pull Stud (Retention Knob) For V-Flange Tooling, BT40 Taper, M16x2.0 Thread, 90° Angle
  • Load image into Gallery viewer, Briney B311-13B: Standard Pull Stud (Retention Knob) For V-Flange Tooling, BT40 Taper, M16x2.0 Thread, 90° Angle

B311-13B

Brand: BRINEY

Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst

MSRP $39.00

Price: $29.25

$29.25

39895253188781


Briney Tooling Systems Part Number: B311-13B
Briney's Retention Knobs (Pull Studs) are made in the USA from the finest steels. Covered by a limited Lifetime Guarantee, these retention knobs will out preform all others. Please check your machine specifications carefully when ordering to ensure the proper fit and use.

  • USA Made
  • Precision Ground
  • Laser Marked
  • Limited Lifetime Guarantee

***Product image may be different than actual product.


Brand: BRINEY TOOLING SYSTEMS
Type: Retention Knobs-Standard
Model: 311-13B

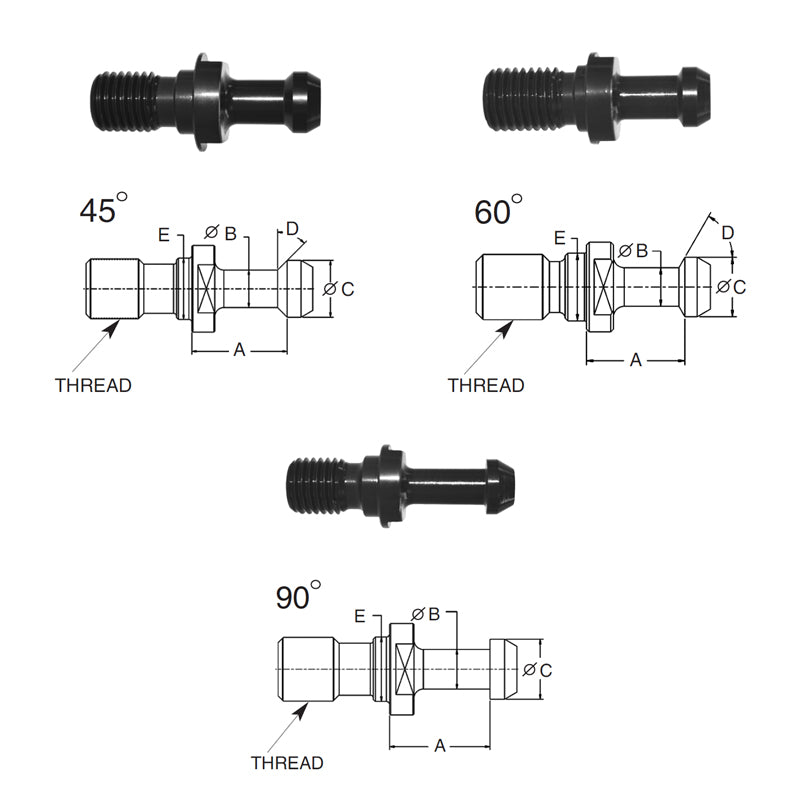

Knob Diameter (in): 0.589
Threads: M16x2.0
Neck Diameter (in): 0.392
Angle: 90
Thru-Coolant: No
O-Ring: No
Pilot Diameter (in): 0.668
Distance From Under Flange to Top Of Knob: 1.1
Country Of Origin: USA
Prop 65: Yes
