Briney B111-26A-HTHS: High Torque Pull Stud (Retention Knob) For V-Flange Tooling, BT40 Taper, M16X2.0 Thread, 45° Angle

data-zoom=

B111-26A-HTHS

Brand: BRINEY

Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst

MSRP $58.00

Price: $43.50

$43.50

39895232643245


Briney Tooling Systems Part Number: B111-26A-HTHS
Briney's Retention Knobs (Pull Studs) are made in the USA from the finest steels. Covered by a limited Lifetime Guarantee, these retention knobs will out preform all others. Please check your machine specifications carefully when ordering to ensure the proper fit and use.

  • USA Made
  • Precision Ground
  • Laser Marked
  • Limited Lifetime Guarantee

***Product image may be different than actual product.


Brand: BRINEY TOOLING SYSTEMS
Type: Retention Knobs-High Torque
Model: 111-26A

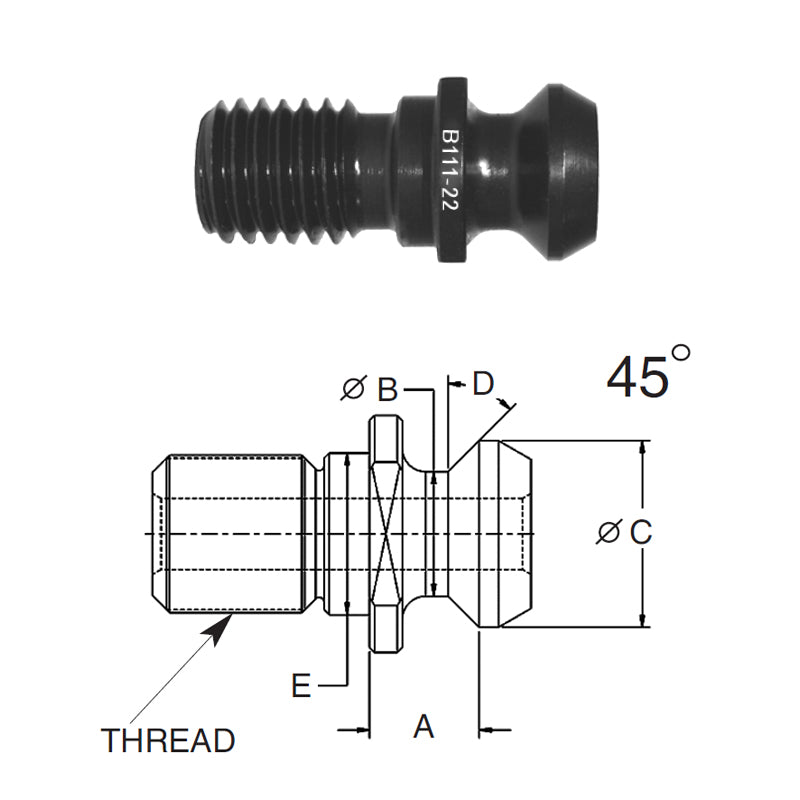

Knob Diameter (in): 0.74
Threads: M16X2.0
Neck Diameter (in): 0.49
Angle: 45
Thru-Coolant: Yes
O-Ring: No
Pilot Diameter (in): 0.668
Distance From Under Flange to Top Of Knob: 0.552
Country Of Origin: USA
Prop 65: Yes
