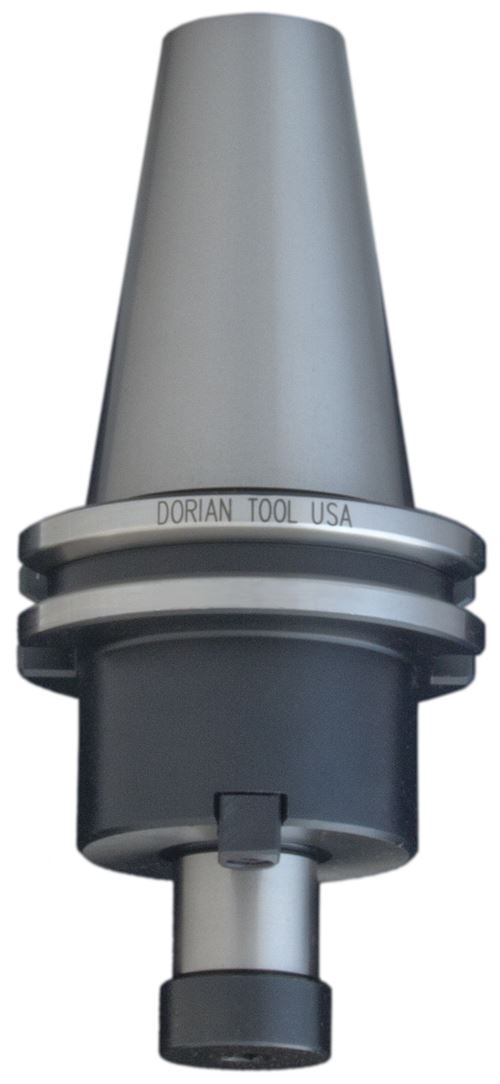

Dorian 733101-45123: 1 in. Dia. Arbor, CAT40 Shell Mill Holder Adapter, with 1.75 in. Projection, 1/2-20 Threads

Dorian 733101-45123: 1 in. Dia. Arbor, CAT40 Shell Mill Holder Adapter, with 1.75 in. Projection, 1/2-20 Threads

733101-45123

Brand: DORIAN TOOL

Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst

Price: $104.20

$104.20

39871596921005


Dorian Tool Part Number: 733101-45123
Dorian Tool Shell Mill Holders are precision made in Italy. Balanced to 12,000 RPM these Shell Mill Holders/ Adapters are built for rigid shell milling applications. The Arbor has a H5 tolerance to create more contact with the mill.

  • .0002" Taper-Arbor Runout Tolerance
  • Made of 8620 Alloy Steel with Case Hardness of 56-60 HRC and Core Hardness of 36-40 HRC
  • Tapers Ground to AT-3
  • Made in Italy

***Product image may be different than actual product.


Brand: DORIAN
Type: Shell Mill Holder
Model: CAT40 SMH-1000-1750
Taper: CAT40
Arbor Diameter (in): 1
Arbor Length (in): 0.68
Arbor Thread: 1/2-20
Projection (in): 1.75
Thru Coolant: No
Head Diameter (in): 2.25
Balanced To:
Prop 65: Yes
Country Of Origin: ITALY
