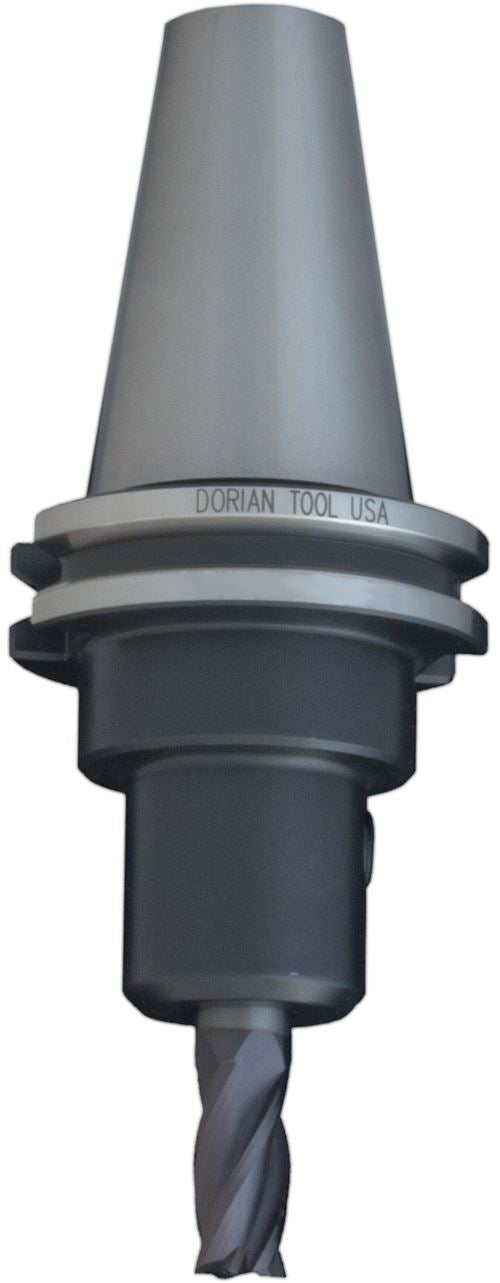

Dorian 733101-45094: 1-1/2 in. CAT50 End Mill Holder, with 4-1/2 in. Projection

data-zoom=

733101-45094

Brand: DORIAN TOOL

Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst

MSRP $266.39

Price: $190.28

$190.28

39871600296109


Dorian Tool Part Number: 733101-45094
Dorian Tool End Mill Holders are precision made in Italy. Balanced to 12,000 RPM these End Mill Holders/ Adapters are very versatile and should be used for rigid machining operations in machines with CAT40 taper spindles. The tapers are ground to AT-3 specifications or better for the right contact with the spindle. The H5 Bore tolerance creates a air-tight fit for maximum contact with the end mill.

  • .0001" Taper-Bore Runout Tolerance
  • Made of 8620 Alloy Steel with Case Hardness of 56-60 HRC and Core Hardness of 36-40 HRC
  • Thru Coolant Feature
  • Made in Italy

***Product image may be different than actual product.


Brand: DORIAN
Type: End Mill Holders
Model: CAT50 EMH-1500-4500
Taper: CAT50
Size: 1-1/2
Projection (in): 4.5
Thru Coolant: Standard Coolant Thru The Body
Head Diameter (in): 2.75
Balanced To: 12000 RPM
Prop 65: Yes
Country Of Origin: ITALY
