Waldmann 113083000-00580684, MQAL 42N, Mach LED Plus.seventy Tube Light; 42.1 in., 100-240V AC, ECO

 data-zoom=

113083000-00580684

Brand: WALDMANN

Direct from Manufacturer: Usually Ships within 2-3 Business Days

MSRP $874.00

Price: $630.00

Regular price
$630.00
Sale price
Regular price
Unit price
per

39620592697517


Waldmann Part Number: 113083000-00580684

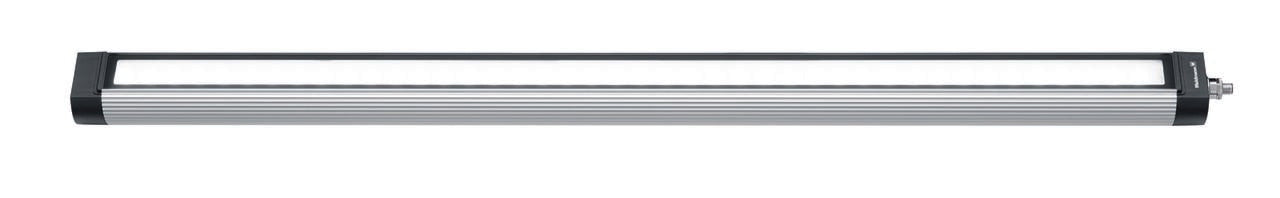

Waldmann's MACH LED PLUS.seventy is the ideal upgrade from fluorescent tube lights to LED linear machine lighting. Its highly efficient LED technology offers at least 60,000 hours of maintenance-free operation. MACH LED PLUS.seventy was designed as a high-tech transition from fluorescent tube lights and fits easily into existing brackets and mounting options. Flexible adapter options and the M12 plug connection ensure fast and easy integration as well. There is no doubt that MACH LED PLUS is considered one of the most sustainable machine lights on the market today.

*Brackets Sold Separately, See Accessories



  • ECO Version; Less powerful light than the High-Output Versions
  • 60,000 hour maintenance-free LED light source
  • Robust anodized aluminum housing and 4mm safety glass
  • Sealed IP67 Rated - highly resistant to coolants and lubricants

***Product image may be different than actual product.


Brand: Waldmann
Series: MACH LED PLUS.70
Model: MQAL 42N
Current AC/DC: AC
Voltage: 100-240
Length (in): 42.1
Width (in): 2.75
Bulb: LED
Mounting Type: Bracket
Wattage: 26
Lumens: 1750
Color Temperature: 5000K
Color Rendering Index (CRI): 85
Lens Material: Glass
Lens Style: Satine
Protection Index: IP67
Operation: Without Switch
Connection: 16' Cord with free stranded wires
Certification: ETL/cETL Approved
Product Warranty: 5 Years



Mounting Options:

MOUNTING OPTION: End Bracket, Adjustable, +/- 65º, Pair
408001876-00582065
MOUNTING OPTION: Clip Bracket, Adjustable, +/- 30º, Each
408001878-00585535
MOUNTING OPTION: Protective Cap Set (not for use with end brackets)
408001875-00582072


Power Options:

OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz
209585029
OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz
209585030
OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V,   50/60Hz
209585032


Connection Options:

CONNECTOR/CABLE: 16' cord with 4-pin, A-coded for 24V, M12 connector, straight (included with 24V models)
US0009001
CONNECTOR/CABLE: 16' cord with 4-pin, S-coded for 120V, M12 connector, straight (included with 120V models)
US0009201
CONNECTOR/CABLE: 16' cord with 4-pin, A-coded for 24V, M12 connector, angled
US0009011
CONNECTOR/CABLE: 16' cord with 4-pin, S-coded for 120V, M12 connector, angled
US0009211
CONNECTOR: M12 Connector, A-coded, 4 pin, female (included for 24V)
336883010-00597530
CONNECTOR: M12 Connector, A-coded, 4 pin, male (for 24V)
336884010-00597520
CONNECTOR: M12 Connector, S-coded, 4 pin, female (included for 120-230V)
336885010-00597538
CONNECTOR: M12 Connector, S-coded, 4 pin, male (for 120-230V)
336886010-00597535


Product Data Sheet
Product Brochure
Product Manual
