Home / WALDMANN LIGHTING / Waldmann 112560000-00003069, MYAL 6 S, FLAT LED Linear Light; 11.2 in. x 3 in., Surface Mount, 10-40V DC
Waldmann 112560000-00003069, MYAL 6 S, FLAT LED Linear Light; 11.2 in. x 3 in., Surface Mount, 10-40V DC
- Regular price
- $490.00
- Sale price
- Regular price
- Unit price
- per
MSRP $579.00
Price: $490.00
39620581425325
Waldmann Part Number: 112560000-00003069

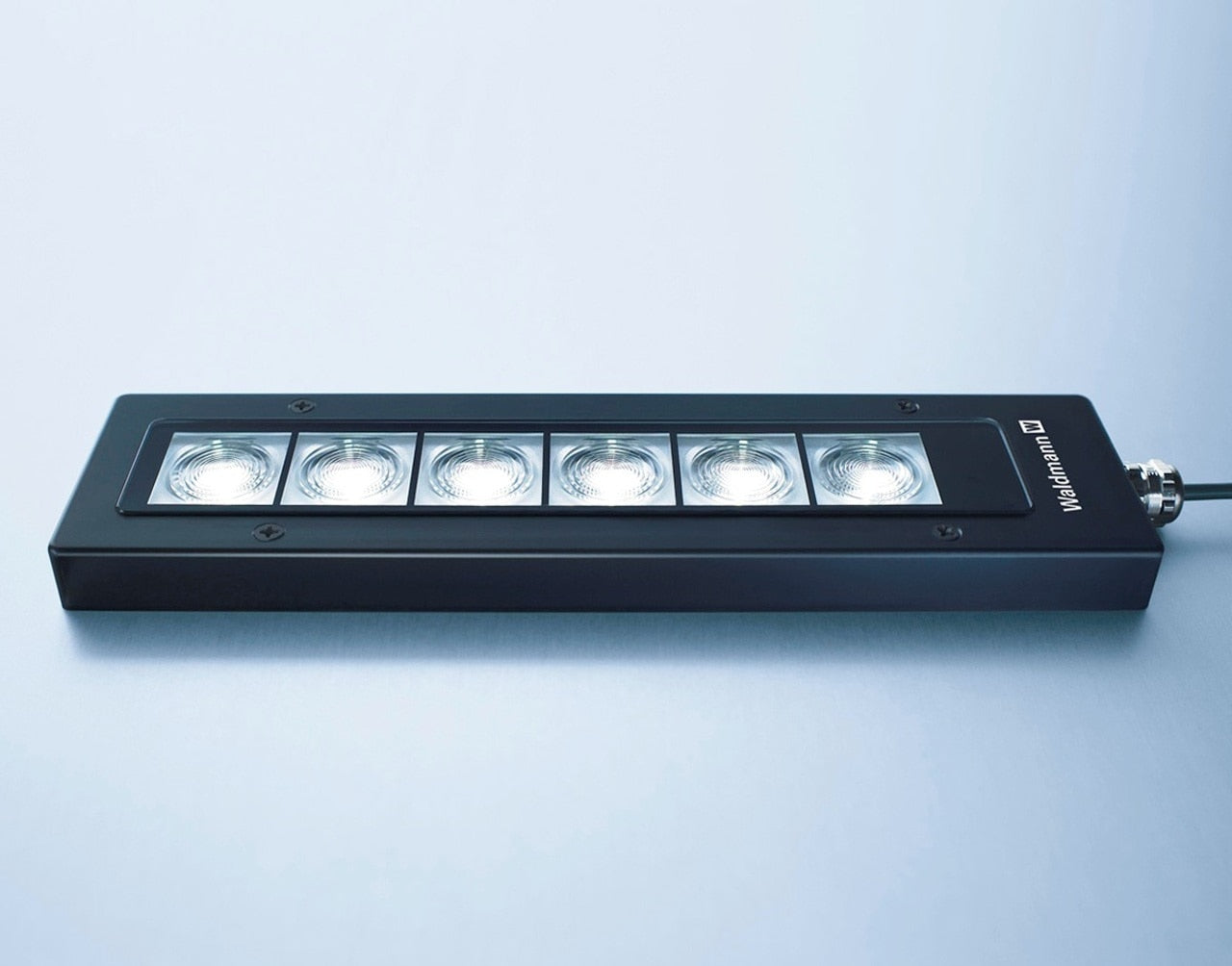

Waldmann's FLAT LED is designed for wide area illumination using state-of-the-art, high output LEDs and specially designed optics to produce intense, wide area illumination in confined spaces. With an overall depth of only 7/8”, the FLAT LED doesn’t cut into available space. And the IP67 protection rating assures that it is safe for use in conditions where equipment must be carefully sanitized – where water, chemicals, high pressures and temperatures can prove fatal for electronic circuits and instrumentation.
- Six high-output LEDs
- 50,000 hours maintenance-free operation
- Precision optics provides 60° beam spread
- High-resistance coating against heat, wear and corrosion
***Product image may be different than actual product.
| Brand: | Waldmann |
| Series: | FLAT LED |
| Model: | MYAL 6S |
| Current AC/DC: | DC |
| Voltage: | 10-40 |
| Length (in): | 11.2 |
| Width (in): | 3 |
| Bulb: | LED |
| Mounting Type: | Bracket |
| Wattage: | 13 |
| Lumens: | 510 |
| Color Temperature: | 6500K |
| Color Rendering Index (CRI): | |
| Lens Material: | Glass |
| Lens Style: | Clear |
| Protection Index: | IP67 |
| Operation: | Without Switch |
| Connection: | 10' Cord with free stranded wires |
| Certification: | ETL/cETL Approved |
| Product Warranty: | 5 Years |
Mounting Options:
|
MOUNTING OPTION: Swivel Bracket |
203081019-00019478 |
Power Options:
|
OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz |
209585029 |
|
OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz |
209585030 |
|
OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V, 50/60Hz |
209585032 |
Product Data Sheet
Product Brochure
Product Manual
